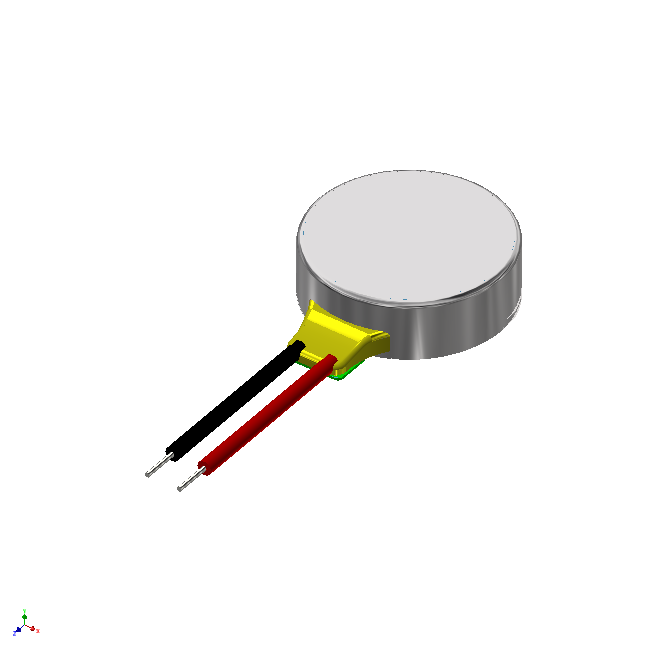

The HD-EM0802-LW30-R is an 8 mm brushless ERM haptic motor with extended 30 mm lead wires for flexible integration. With a rated speed of 13,000 RPM at 3 VDC and strong 0.4 G vibration output, this actuator provides reliable tactile feedback while maintaining mechanical noise under 50 dBA. Designed for robust environments, it has been tested for high temperature, drop resistance, and long-term endurance up to 500,000 cycles.

Technical Highlights

  • Rated Voltage: 3.0 VDC

  • Speed: 13,000 ± 3,000 RPM

  • Current Draw: 80 mA max

  • Starting Voltage: ≤ 2.5 VDC

  • Vibration Strength: 0.4 G

  • Lead Wires: 30 mm

  • Operating Temp: -20 ~ +60 °C

Unit of Measure

Height

 N/A 2.5 mm

Width

 N/A 8 mm

Length

 N/A 8 mm

Operating Temperature

 N/A -20 ~ +60 ºC

Device Type

 N/A ERM

Terminal / Mounting

 N/A Lead Wires

Rated Voltage

 N/A 3 V

Voltage Minimum

 N/A 2.5

Terminal Resistance

 N/A 38 Ω

Current Draw

 N/A 90 mA

Rated Speed

 N/A 15000 rpm

Voltage Maximum

 N/A 3.6

Tolerance (±)

 N/A 50 %

Weight

 N/A 0.95 g
