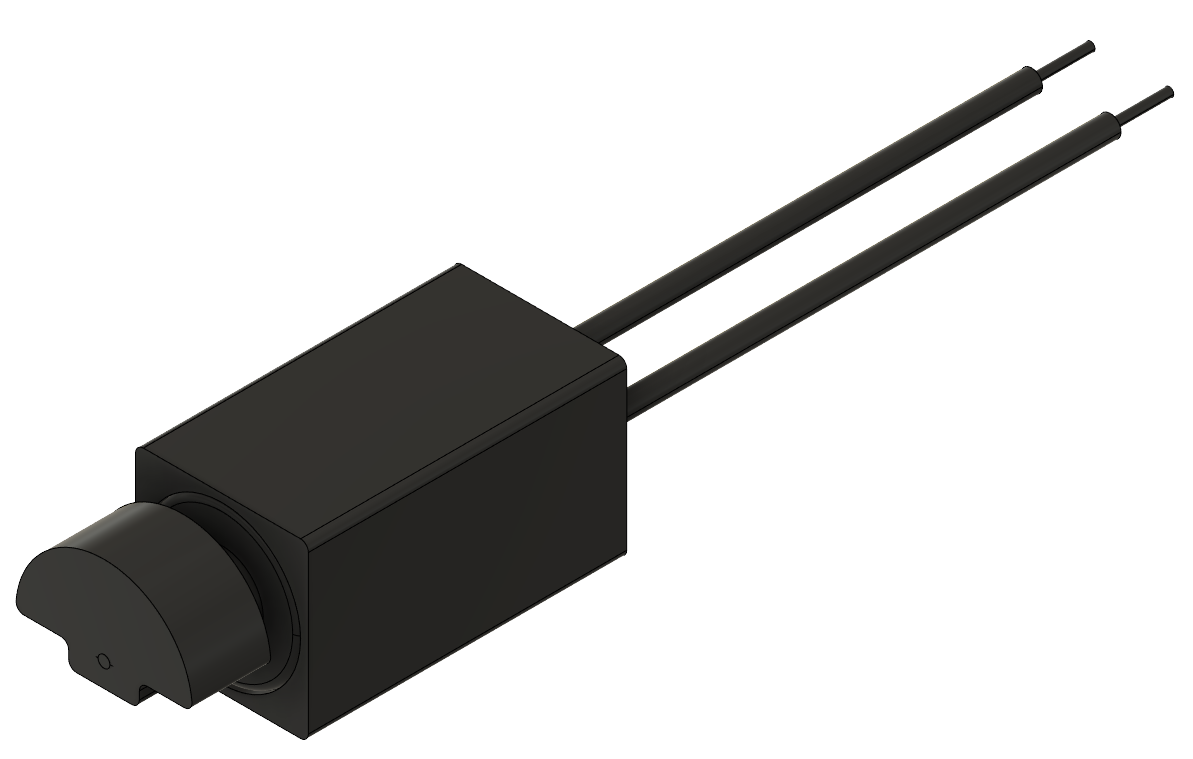

The HD-EMB1104-LW15-R is an 11 mm brush-type ERM haptic motor designed for robust tactile feedback in wearable and handheld devices. With 15 mm lead wires for easy integration, it produces 12,000 RPM at 3 VDC while maintaining quiet operation under 50 dBA. Extensively tested for endurance, including drop resistance, vibration testing, and 60,000 operating cycles, it ensures long-lasting performance across a wide range of haptic applications.

Technical Highlights

• Rated Voltage: 3.0 VDC

• Speed: 12,000 ± 3,000 RPM

• Current Draw: 90 mA

• Stall Current: 120 mA

• Shaft Pull Strength: ≥ 3 kg

• Shaft End Play: ≤ 0.3 mm

• Noise: ≤ 50 dBA

• Lead Wires: 15 mm

• Operating Temp: -20 ~ +60 °C

• Storage Temp: -40 ~ +85 °C

• Weight: 1 g
