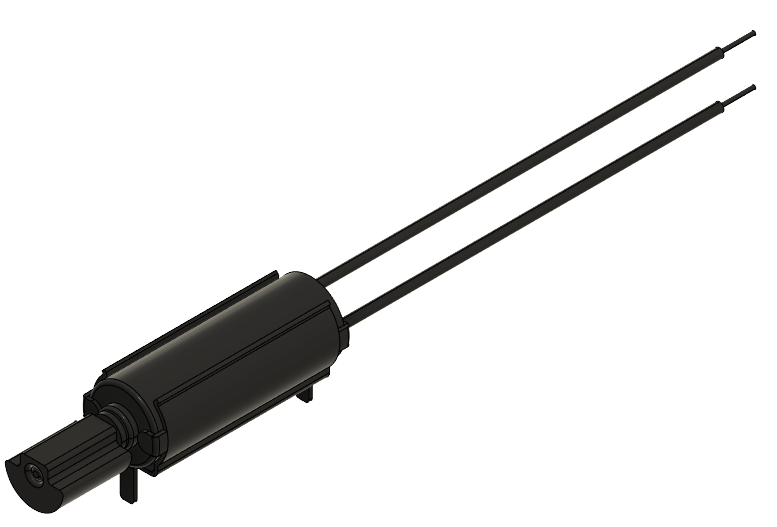

The HD-EMB1604-LW26-R is a 1.5VDC vibration motor engineered for compact, low-voltage applications. With 26mm lead wires for flexible integration, it generates 14,000 RPM speed while keeping mechanical noise under 50 dBA.

This motor is optimized for low-power devices where efficiency, size, and quiet performance are critical.

Key Features:

• Operates at 1.5 VDC, starts at 1.2 VDC

• Rated Speed: 14,000 RPM ±3,500

• Low-noise: ≤50 dBA

• Compact weight: 0.8g

• 26mm lead wires for simple mounting

Specifications:

• Operating Voltage: 1.2–1.5 VDC

• Rated Current: 90 mA

• Starting Current: 140 mA

• Terminal Resistance: 14 ±20% Ω

• Storage Temp: -40 to +85°C

• Operating Temp: -20 to +60°C

Applications:

• Wearables

• IoT devices

• Low-voltage controllers

• Medical devices
