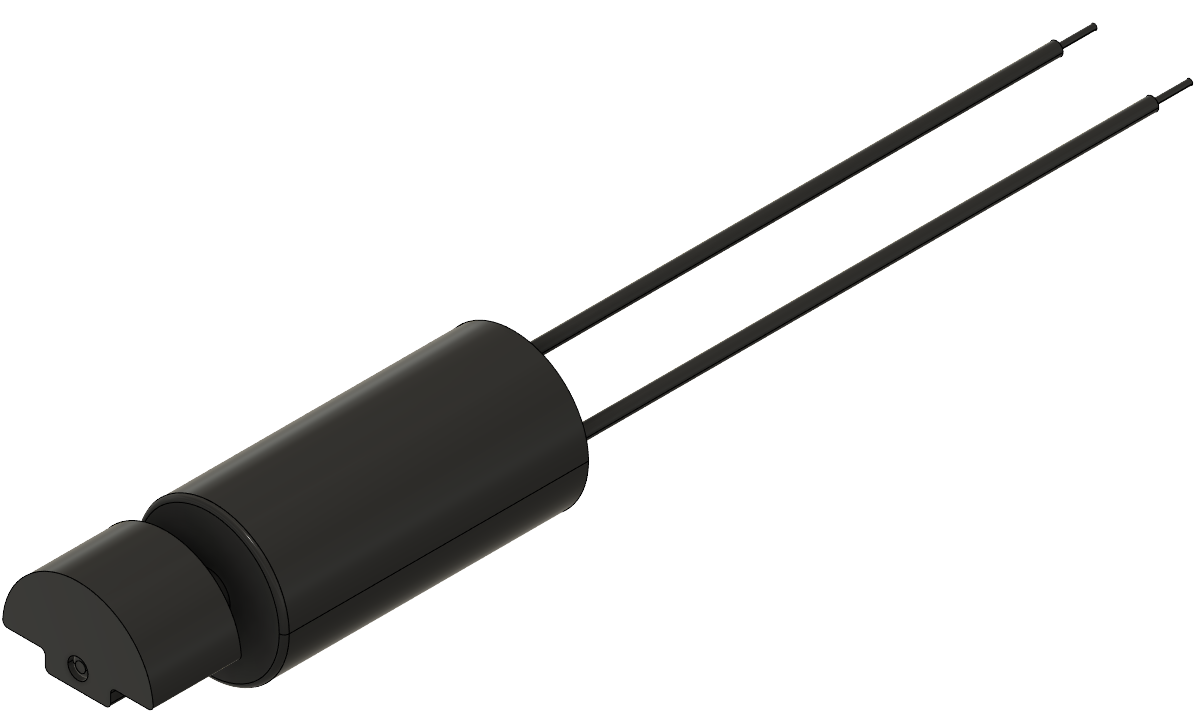

The HD-EMB1706-LW25-R is a 3VDC vibration motor with 25mm lead wires for straightforward installation. It delivers 9,000 RPM speed, ≤55 dBA noise, and CW/CCW rotation for versatile applications.

Engineered for wearables, handhelds, and IoT devices, it offers 50,000 cycle durability under real-world stress testing.

Key Features:

• 3VDC rated voltage

• Rated Speed: 9,000 ±2,500 RPM

• 25mm lead wires

• Acoustic noise ≤55 dBA

• 1g actuator mass

Specifications:

• Operating Voltage: 2.4–3.6 VDC

• Rated Current: 80 mA

• Locked Current: 120 mA

• Terminal Resistance: 30 ±20% Ω

• Storage Temp: -40 to +80°C

• Operating Temp: -30 to +70°C

Applications:

• Consumer electronics

• Wearable devices

• IoT haptics

• Medical controllers
