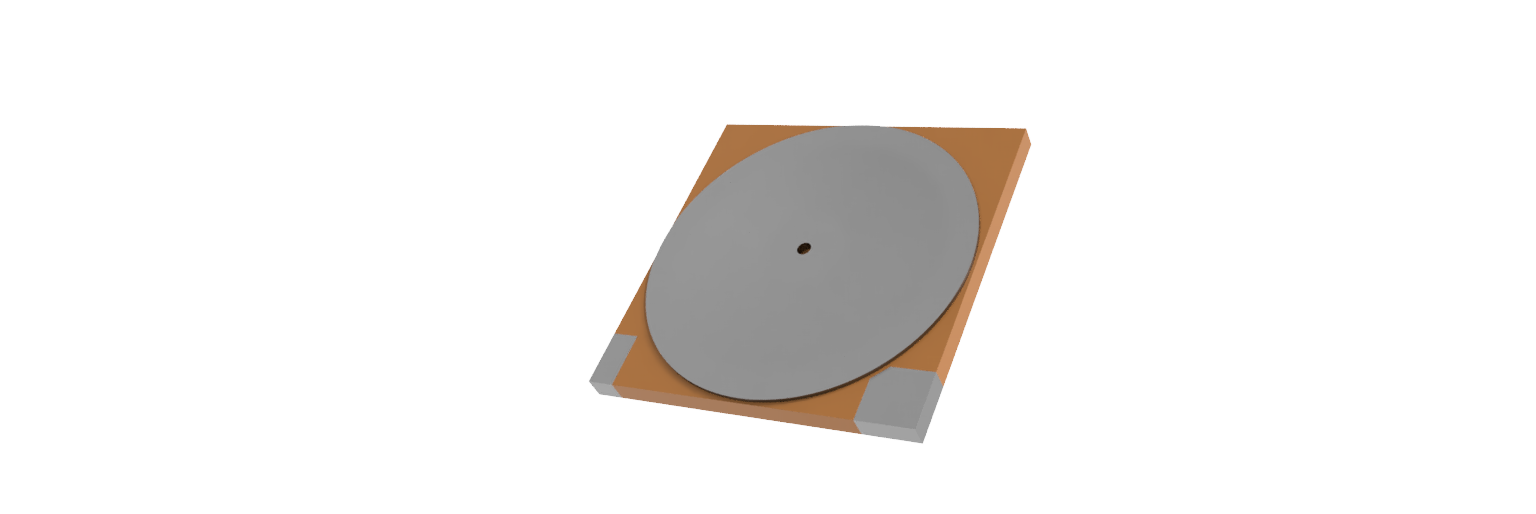

The HD-PAC1212 is a compact, square piezoelectric haptic actuator designed to deliver fast response times and powerful tactile feedback in a slim 12 x 12 x 1.44 mm form factor. Utilizing a titanium cymbal structure, the actuator emphasizes displacement performance while maintaining durability and efficiency.

With a resonant frequency of 24 kHz (±5 kHz) and nominal displacement of 45μm, the HD-PAC1212 is ideal for miniaturized haptic systems, precision interfaces, and compact consumer devices. Its high capacitance of 1.0μF (@1V, 1kHz) supports efficient energy transfer, while compliance with RoHS/REACH (Exempt 7c-1) ensures environmental safety.

The actuator’s square geometry provides design flexibility where circular actuators may not fit, making it a versatile option for wearables, medical devices, and gaming controls.

Key Features:

• 12mm x 12mm thin-profile piezo actuator (1.44mm thick)

• Strong haptic output using titanium cymbals

• Resonant frequency: 24 ± 5 kHz

• Nominal displacement: 45μm @ ±Vp

• High capacitance: 1.0 μF at 1kHz

• Optimized for fast response and precise feedback

• RoHS/REACH compliant (Exempt 7c-1)

• Lightweight (1.04g) for portable and wearable devices
