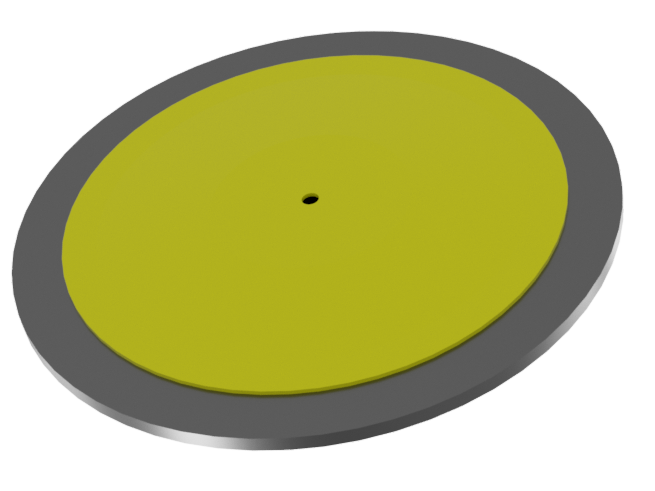

The HD-PAC2102 is a disc-shaped piezoelectric actuator engineered for strong haptic feedback and fast response in thin-profile designs. Measuring just 21mm in diameter and 1.52mm thick, it balances compact form factor with powerful tactile performance.

With a resonant frequency of 14 kHz (±1 kHz) and a nominal displacement of 50μm, the HD-PAC2102 delivers robust haptic sensations for applications such as touchscreens, medical equipment, VR/AR interfaces, and portable electronics. Its titanium cymbal construction enhances durability and displacement force, while its high capacitance of 400nF (@1V, 1kHz) supports efficient signal responsiveness.

This actuator is RoHS/REACH compliant (Exempt 7c-1) and optimized for hand solder and low-melting solder assembly, ensuring compatibility with modern production methods.

Key Features:

• 21mm thin-profile disc piezo actuator (1.52mm thickness)

• Strong haptic feedback with titanium cymbal design

• Resonant frequency: 14 ± 1 kHz

• Nominal displacement: 50μm @ ±Vp

• Capacitance: 400nF at 1kHz

• Wide operating temperature range (-25°C to +60°C)

• RoHS/REACH compliant (Exempt 7c-1)

• Ideal for VR/AR, touch interfaces, and compact medical devices
