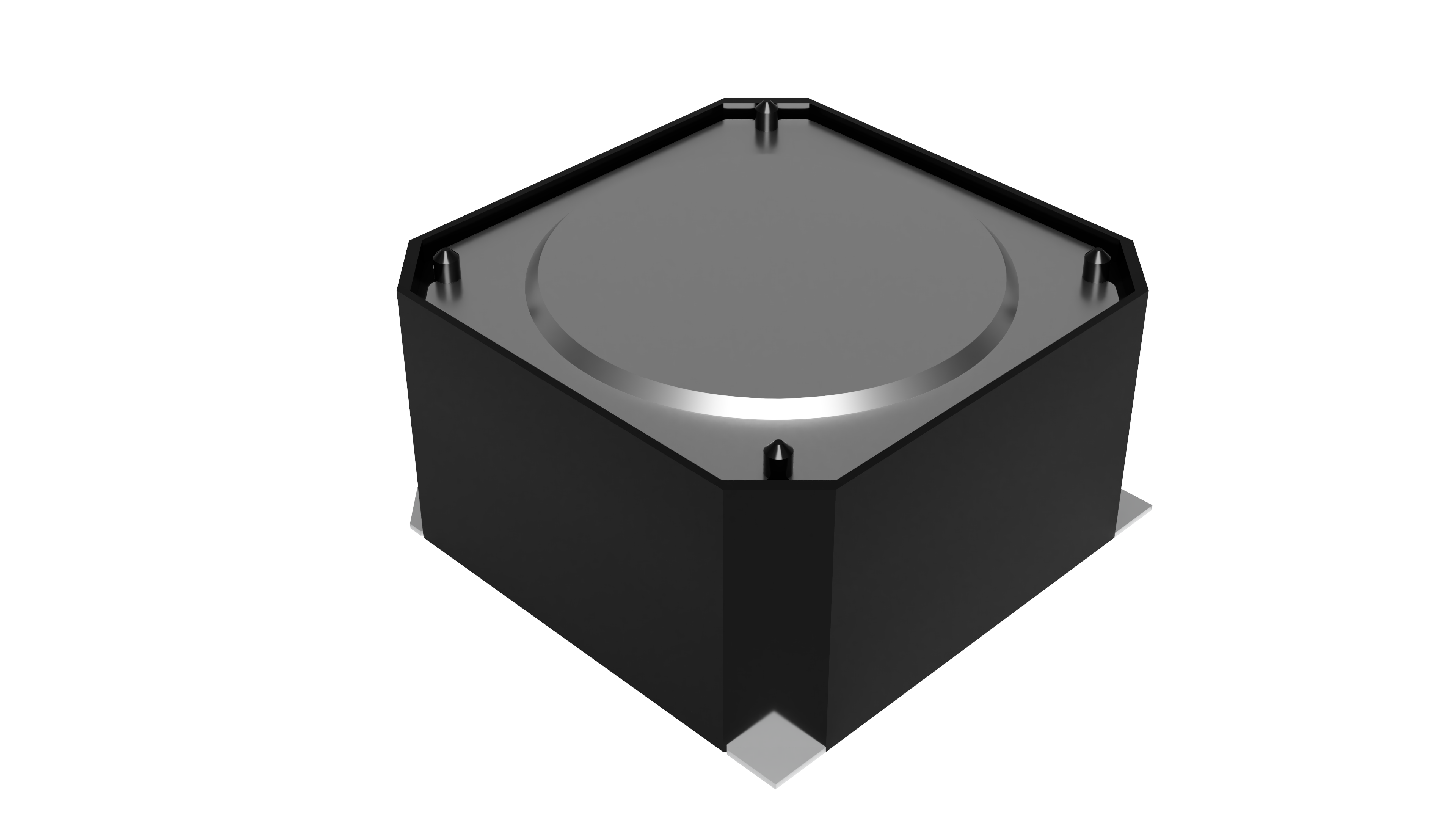

The HD-LA1307-SM from PUI Audio is a surface-mount linear resonant actuator (LRA) that combines patented haptic technology with SMT compatibility for high-efficiency tactile feedback. Delivering 1.8 ± 0.3 Gpp acceleration at just 2 Vrms, this LRA is designed for VR, gaming consoles, medical simulators, and handheld consumer electronics.

Key Features

  • Patented PUI haptic design for enhanced tactile clarity

  • Surface mount package for automated PCB integration

  • Resonant frequency: 154 ± 15 Hz

  • High acceleration output: 1.8 ± 0.3 Gpp

  • Durability tested: >100,000 operating cycles

  • Reflow solder compatible

Applications

  • VR & AR controllers

  • Gaming handhelds & consoles

  • Medical haptic devices

  • Industrial & consumer user interfaces

Unit of Measure

Manufacturer

 N/A PUI Audio

Height

 N/A 6.9 mm

Width

 N/A 13 mm

Length

 N/A 13 mm

Operating Temperature

 N/A -20 ~ +65 ºC

Device Type

 N/A LRA

Terminal / Mounting

 N/A Solder

Voltage Minimum

 N/A 1

Vibration

 N/A 1.8

Voltage Maximum

 N/A 2

Tolerance (±)

 N/A 15 %

Weight

 N/A 2.4 g
