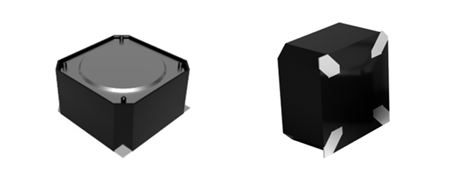

• LRA Haptics.JPG

Linear Resonant Actuators (LRAs) deliver fast-response, energy-efficient tactile feedback using spring-mass resonance systems. With coin-style LRAs and surface-mount LRAs, our portfolio covers a wide range of applications — from wearables and consumer electronics to VR/AR systems and medical simulators.

Benefits of LRA Haptics

  • Fast response times for crisp, immediate feedback

  • Energy efficient compared to ERM motors

  • Compact and lightweight for portable devices

  • Consistent performance with tuned resonance

  • Flexible integration with both coin-style and SMT packages

Available Products

  • HD-LA0803-LW10-R – 8mm coin-style LRA for wearables & handhelds

  • HD-LA1307-SM – Surface mount LRA with patented design for VR & gaming

Applications

  • Wearables & smartwatches

  • VR/AR controllers

  • Gaming consoles & handhelds

  • Medical & training simulators

  • Consumer and industrial interfaces

1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

List Price

Manufacturer

Height

Width

Length

Operating Temperature

Device Type

Terminal / Mounting

Rated Voltage

Voltage Minimum

Terminal Resistance

Vibration

Voltage Maximum

Tolerance (±)

Weight

Add To Cart/Request Quote
QUOTE N/A PUI Audio N/A 3.2 mm N/A 8 mm N/A 8 mm N/A -20 ~ +70 ºC N/A LRA N/A Lead Wires N/A 2 V N/A N/A 25 Ω N/A 1.5 Gs RMS N/A N/A 15 % N/A 1 g Add To Cart
Request Quote
QUOTE N/A PUI Audio N/A 6.9 mm N/A 13 mm N/A 13 mm N/A -20 ~ +65 ºC N/A LRA N/A Solder N/A N/A 1 N/A N/A 1.8 N/A 2 N/A 15 % N/A 2.4 g Add To Cart
Request Quote
